Thupa ea Sapphire Cylinder Conical End Thupa e Tapered

Lere la Sapphire Cylinder Conical End Thupa e Tapered Featured Image

Tlhaloso e Khutšoanyane:

Li-conical rods tsa safire ke likarolo tsa kristale tse nang le sebopeho se nepahetseng hantle tse entsoeng ka safire e hloekileng haholo (Al₂O₃), e entsoeng ka sebopeho sa cylindrical se tapered. Ka lebaka la motsoako o ikhethang oa safire e thata haholo (9 sekaleng sa Mohs), sebaka se phahameng sa ho qhibiliha (2030 ° C), ponahalo e ntle haholo ea optical ho tloha ho ultraviolet ho ea bohareng ba infrared (200 nm-5.5 μm), le khanyetso e ikhethang ea ho roala, khatello, le ho bola ha lik'hemik'hale, lithupa tsena tsa conical li sebelisoa haholo indastering le ts'ebelisong ea mahlale.

Re romelle lengolo-tsoibila

Likaroloana

Setšoantšo se qaqileng

Kenyelletso ea Sehlahisoa sa Molamu oa Sapphire

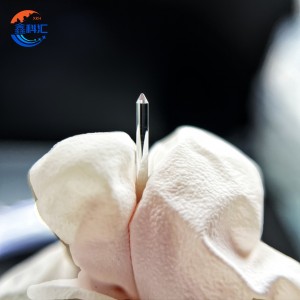

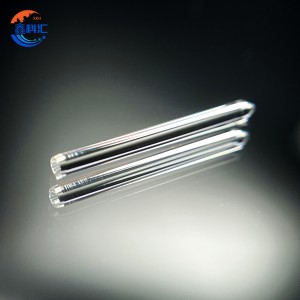

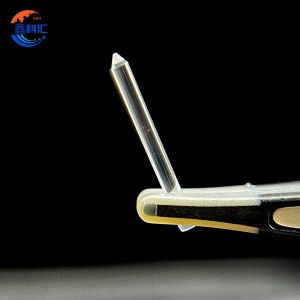

Li-conical rods tsa safire ke likarolo tsa kristale tse nang le sebopeho se nepahetseng tse entsoeng ka safire e hloekileng haholo (Al₂O₃), e entsoeng ka sebopeho sa cylindrical se tapered. Ka lebaka la motsoako o ikhethang oa safire e thata haholo (9 sekaleng sa Mohs), sebaka se phahameng sa ho qhibiliha (2030°C), ponahalo e ntle haholo ea optical ho tloha ho ultraviolet ho isa bohareng ba infrared range (200 nm–5.5 μm), le khanyetso e ikhethang ea ho roala, khatello le ho bola ha lik'hemik'hale, lisebelisoa tsena tsa conical ke sapphire le liindasteri tse sebelisoang ka bongata.

Conical geometry e loketse haholo-holo bakeng sa ho tsepamisa maikutlo ho laser, tataiso ea mabone a optical, kapa e le likarolo tsa tlhahlobo ea mochini tlas'a maemo a feteletseng. lithupa tsa conical Sapphire ha li nkoe e le tsa bohlokoa eseng feela ka lebaka la ho tšoarella ha mochini empa hape le bakeng sa ts'ebetso ea tsona ea mahlo le bokhoni ba ho boloka botsitso ba sebopeho maemong a khatello e phahameng le mocheso o phahameng.

Melamu ena ea safire hangata e sebelisoa liindastering tse kang sefofane, lisebelisoa tsa bongaka, semiconductor processing, metrology, le fisiks e matla haholo.

Molao-motheo oa Tlhahiso ea Sapphire Rod

Lithupa tsa Conical Sapphire li etsoa ka mokhoa oa mekhahlelo e mengata o kenyelletsang:

Khōlo ea Crystal

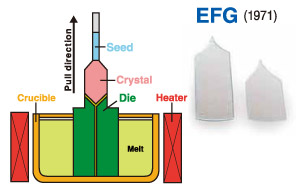

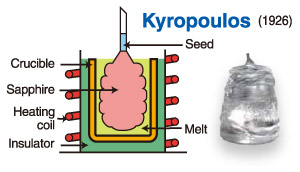

The base material is a high quality single-crystal sapphire hōlileng ka ho sebelisa e ka baKyropoulos (KY)mokhoa kapa mokhoa oaKhōlo e Feptjoang ka filimi ea Edge-Defined (EFG)thekniki. Mekhoa ena e lumella tlhahiso ea likristale tse kholo, tse se nang khatello ea kelello, le optically pure pure bakeng sa molamu oa safire.
Precision Machining
Kamora kholo ea kristale, likheo tsa cylindrical li entsoe ka libopeho tse kholo ho sebelisoa lisebelisoa tsa machining tsa CNC tse nepahetseng haholo. Tlhokomelo e khethehileng e lefshoa ho taper angle accuracity, surface concentricity, le dimensional tolerances.
Ho Pholisa le Phekolo ea Bokaholimo
Lithupa tsa safire tse entsoeng ka mochini li na le mekhahlelo e mengata ea ho bentša ho fihlela liphetho tse holimo tsa maemo a holimo. Sena se kenyelletsa ho belisoa ha lik'hemik'hale (CMP) ho netefatsa hore ho na le mahlahahlaha a tlaase le ho fetisa khanya e ngata.
Tlhahlobo ea Boleng
Lihlahisoa tsa ho qetela li tlas'a tlhahlobo ea "interferometric surface", liteko tsa phetisetso ea optical, le netefatso ea litekanyo ho fihlela litekanyetso tse thata tsa indasteri kapa tsa mahlale.

Lisebelisoa tsa Lithupa tsa Sapphire

Lithupa tsa Conical Sapphire li sebetsa ka mokhoa o fapaneng haholo 'me li sebelisoa mefuteng e mengata e fapaneng ea botekgeniki e batloang haholo:

Laser Optics By Sapphire Rod
E sebelisoa e le malebela a ho tsepamisa mohopolo, lifensetere tse tsoang, kapa lilense tse kopanyang lits'ebetsong tsa laser tse matla ka lebaka la botsitso ba tsona bo botle ba mocheso le optical.
Lisebelisoa tsa Bongaka Ka Sapphire Rod
E sebelisoa ka lisebelisoa tsa endoscopic kapa tsa laparoscopic e le li-probes kapa lifensetere tsa ho shebella, moo ho leng bohlokoa ho etsa miniaturization, biocompatibility, le durability.
Semiconductor Equipment By Sapphire Rod
E sebelisoa e le lisebelisoa tsa ho hlahloba kapa tsa ho hokahanya, haholo-holo ka likamoreng tsa plasma etching kapa deposition, ka lebaka la ho hanana le libomo tsa ion le lik'hemik'hale.
Sefofane le Tšireletso Ka Sapphire Rod
E sebelisoa lits'ebetsong tsa tataiso ea metsu, lithebe tsa sensor, kapa likarolo tsa mochini tse thibelang mocheso libakeng tse feteletseng.
Lisebelisoa tsa Saense Ka Sapphire Rod
E sebelisoa ho liteko tsa mocheso o phahameng kapa oa khatello e phahameng joalo ka liema-bono, lisensara tsa khatello, kapa lisebelisoa tsa mocheso.

Melemo ea Bohlokoa ea Melamu ea Sapphire

Thepa e Hlollang ea Mechanical (molamu oa safire)
Ea bobeli feela ho daemane ka boima ba 'mele, safire e hanana le ho hoa, ho senyeha le ho apara.
Wide Optical Transmission Range(molamu oa safire)
E pepenene ho UV, e bonahalang, le ponahalo ea IR, e etsa hore e be e loketseng bakeng sa litsamaiso tse ngata tsa optical.
Ho hanyetsana le Mocheso o Phahameng(molamu oa safire)
E mamella mocheso oa ho sebetsa ka holimo ho 1600°C mme e na le ntlha ea ho qhibiliha e fetang 2000°C.
Boikemisetso ba Lik'hemik'hale(molamu oa safire)
Ha e amehe ke li-acids le li-alkali tse ngata, e etsa hore e be e loketseng bakeng sa libaka tse senyang tse kang lik'hemik'hale tsa mouoane oa lik'hemik'hale (CVD) kapa likamore tsa plasma.
Geometry e ikhethileng(molamu oa safire)
E fumaneha ka mefuta e mengata e fapaneng ea li-angles tsa taper, bolelele le bophara. Li-profaele tse phethiloeng habeli, tse hatetsoeng, kapa tsa convex le tsona lia khonahala.

Lipotso tse atisang ho botsoa (FAQ) tsa Sapphire Rods

Q1: Ke li-angles life tse fumanehang bakeng sa melamu ea conical ea safire?
A:Li-angles tsa taper li ka etsoa ho tloha tlase ho 5 ° ho ea ho 60 °, ho itšetlehile ka mosebetsi o reriloeng oa optical kapa mochine.

Q2: Na liphahlo tse khahlanong le ho bonahatsa li fumaneha?
A:Ee. Le hoja safire ka boeona e na le phetisetso e ntle, liphahlo tsa AR bakeng sa wavelengths tse itseng (mohlala, 1064 nm, 532 nm) li ka sebelisoa ha u kopa.

Q3: Na lithupa tsa conical tsa safire li ka sebelisoa tlas'a vacuum kapa libakeng tsa plasma?
A:Ruri. Sapphire ke e 'ngoe ea lisebelisoa tse ntle ka ho fetisisa bakeng sa vacuum e phahameng ka ho fetesisa le maemo a plasma a sebetsang ka lebaka la ho se sebetse ha eona le tlhaho ea eona e se nang khase.

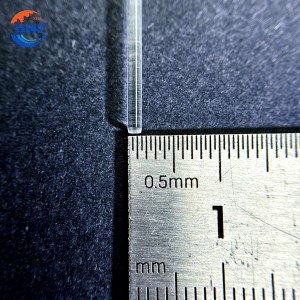

Q4: Ke mamello efe e tloaelehileng bakeng sa bophara le bolelele?
A:Mamello e tloaelehileng ke ± 0.05 mm bakeng sa bophara le ± 0.1 mm ka bolelele. Ho mamellana ho thata ho ka finyelloa bakeng sa lits'ebetso tse nepahetseng haholo.

Q5: Na o ka fana ka li-prototypes kapa lipalo tse nyane?
A:Ee. Re ts'ehetsa liodara tsa boleng bo tlase, lisampole tsa R&D, le tlhahiso e felletseng e nang le taolo e tsitsitseng ea boleng.
